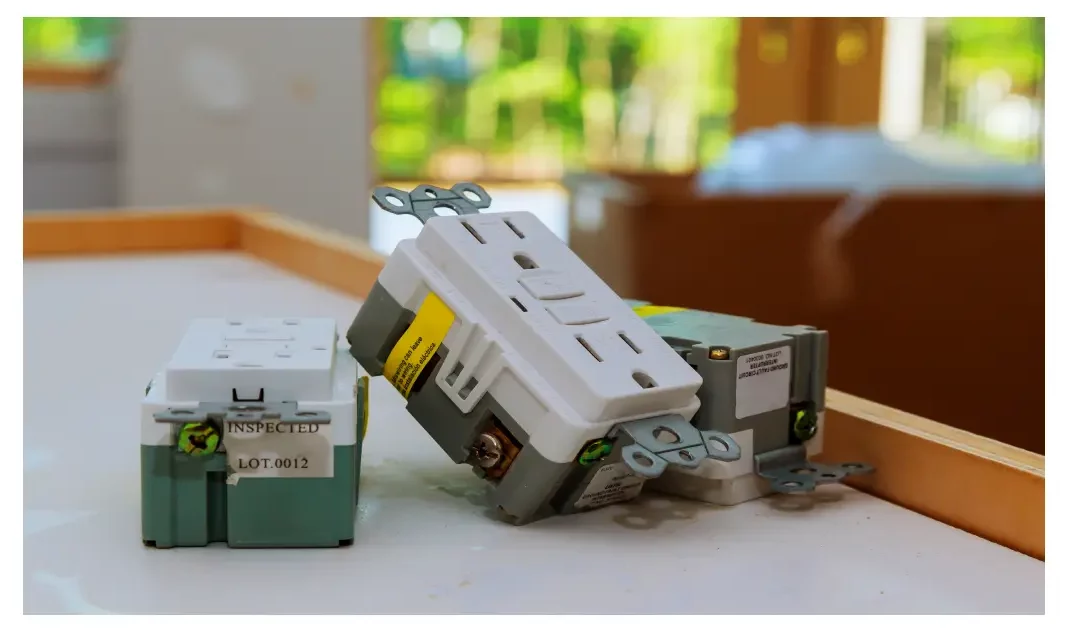

Ground Fault Circuit Interrupters (GFCIs) are devices that protect consumers against electrical shock caused by ground faults and leakage. These faults occur when an electrical current travels through an unintended path, such as a person’s body, instead of the intended conductor. GFCIs work by monitoring the electrical current flowing through a circuit and quickly shutting off power if there is an imbalance between the hot wire and neutral wire, which can cause nuisance tripping. Additionally, AFCIs can also protect against arc faults that can occur when there is damaged or overheated wiring.
The National Electrical Code (NEC) requires GFCIs in certain areas of homes, such as kitchens, bathrooms, and outdoor outlets to prevent electrocution. These devices are different from circuit breakers which protect against overloading and short circuits, and Arc Fault Circuit Interrupters (AFCIs), which protect against electrical fires caused by arcing. Neutral wiring is also important for proper GFCI function and to avoid nuisance tripping. It is especially important to have GFCIs when using power tools.
GFCIs, which are important safety devices for electrical safety, can be installed in outlets or as part of a circuit breaker in accordance with the national electrical code. They typically have a test button to ensure they are functioning properly and can protect against electrical hazards caused by power tools. If the test button does not trip the device, it may need to be replaced.
In order to understand how safety devices like GFCIs and AFCIs work, it is important to understand the basics of electrical circuits. An electrical circuit consists of three parts: a power source (such as a battery or generator), a conductor (such as copper wiring), and a load (such as a light bulb). The power source provides energy that flows through the conductor to power the load. AFCIs are typically installed in the panel and secured with screws.
In normal operation, all of the current flowing out of the power source returns back through the neutral wire, adhering to the standards set by the national electrical code for electrical safety. However, if there is a fault in the system that allows some of this current to flow through another path (such as your body), then this can cause serious injury or even death. It is important to ensure that all screws are tightly secured and that afcis are installed to prevent such incidents.
This is where GFCIs come in. They monitor both sides of an electrical circuit – both incoming and outgoing currents – using two separate coils within their design. These coils detect any difference between incoming and outgoing currents exceeding 5 milliamps (mA), even when the neutral wiring is not properly connected to the screws, then they will trip within 1/40th of a second, shutting off power to the circuit.
What is a Ground Fault and Why It’s Dangerous
Ground faults can be a serious hazard in any electrical system, including those that use power tools. They occur when an electrical current escapes its intended path and flows through the ground instead. This can happen for a variety of reasons, including damaged wiring, faulty appliances, or human error. In this section, we will discuss what ground faults are and why they are dangerous for those using power tools.
What is a Ground Fault?
A ground fault occurs when an electrical current finds an unintended path to the ground. Normally, electricity flows through wires that are designed to carry it safely from one place to another. However, if there is a break in the wiring or if a power tool malfunctions, electricity may find its way into the ground instead. This can create a dangerous situation because the ground is not designed to handle large amounts of electricity.
Why Ground Faults Are Dangerous
Ground faults can be extremely dangerous because they can lead to electrical shock. When someone comes into contact with electricity that has escaped its intended path and is flowing through the ground, they can suffer serious injury or even death. Electrical shock occurs when electricity passes through a person’s body and disrupts normal bodily functions.
In addition to electrical shock, ground faults can also create arc faults. An arc fault occurs when electricity jumps from one wire to another, creating sparks that can ignite nearby materials such as wood or paper. Arcing is often accompanied by loud popping sounds and bright flashes of light.
Preventing Ground Faults
The best way to prevent ground faults is by installing Ground Fault Circuit Interrupters (GFCIs). These devices are designed to detect ground faults and quickly shut off power before anyone gets hurt. GFCIs work by constantly monitoring the amount of current flowing through a circuit. If they detect any irregularities in the flow of electricity (such as too much current going into the ground), they will immediately shut off power to that circuit.
It’s important to regularly test GFCIs to ensure they are functioning properly and providing adequate protection against ground faults. If you’re not sure whether your GFCIs are working correctly, it’s best to call in a professional electrician to inspect them.
How GFCIs Work to Prevent Electrical Incidents
Constant Monitoring for Maximum Safety
GFCIs, or ground fault circuit interrupters, are an essential component of any safe electrical system. These devices work by constantly monitoring the flow of electricity through a circuit to ensure that it is flowing safely and correctly. If the GFCI detects that the current is flowing through an unintended path, such as through a person’s body, it immediately shuts off the power to prevent electrocution.
This constant monitoring is what sets GFCIs apart from other types of circuit breakers. While traditional circuit breakers are designed to protect against overloading and short circuits, they do not offer the same level of protection against electrical shock. GFCIs can detect even small imbalances in the electrical current, as little as 5 milliamps, which is enough to cause serious injury or death.
Required by Code
Because of their ability to prevent electrical incidents, GFCIs are required by code in certain areas of a home. For example, all outlets within six feet of a sink in a bathroom or kitchen must be protected by a GFCI. The same goes for outdoor outlets and those located near swimming pools or hot tubs.
While some homeowners may view these requirements as an inconvenience or unnecessary expense, they are actually critical for ensuring maximum safety within the home. In fact, according to data from the National Fire Protection Association (NFPA), two-thirds of all electrocutions in homes could be prevented with the use of GFCIs.
The effectiveness of GFCIs has been demonstrated time and again through real-world case studies. For example:
- In 2019, a man was saved from electrocution after his boat docked at an improperly wired marina with no GFCI protection on its power pedestals.
- In 2018, two children were saved from electrocution after coming into contact with an electrified pool ladder that had no GFCI protection.
- In 2017, a woman was saved from electrocution after touching a metal fence that had become electrified due to an improperly grounded electrical system.
These cases demonstrate the importance of GFCIs in preventing electrical incidents and saving lives. By constantly monitoring the flow of electricity and shutting off power when necessary, these devices play a critical role in ensuring maximum safety within the home.
The Importance of Installing GFCI Outlets in Your Home
GFCI Outlets: Your Home’s Essential Safety Device
Electrical safety should be a top priority in every household. Electrical shocks and electrocution can happen anywhere, anytime, and to anyone. That is why it is important to install ground fault circuit interrupter (GFCI) outlets in your home. GFCI protection is an essential safety device that helps prevent electrocution and electrical shock.
Added Layer of Protection
Installing GFCI receptacles in your home, especially in bathrooms and kitchens, can provide an added layer of protection for you and your family. These areas are often wet or damp, making them more susceptible to electrical hazards. With GFCI protection, you can have peace of mind knowing that the risk of electrocution is significantly reduced.
How GFCI Outlets Work
GFCI outlets work by detecting any imbalance in the flow of electricity and shutting off power to the receptacle within milliseconds to prevent electrocution. They monitor the current flowing from hot to neutral wiring and immediately cut off power if there is any deviation from normalcy. This quick response time makes them highly effective at preventing electrical accidents.
Installation by an Electrician
An electrician can help you install GFCI outlets correctly and ensure that they are working properly to provide maximum protection. It is important to have a professional handle the installation process because incorrect installation could lead to dangerous situations.
Power Tools and Other Electrical Equipment
GFCI protection is particularly important when using power tools and other electrical equipment that can pose a risk of electrocution or electrical shock. Appliances such as hair dryers, curling irons, and electric razors used near sinks or bathtubs also require GFCI protection.
Nuisance Tripping
While nuisance tripping can be frustrating, it is a sign that your GFCI outlet is working correctly and providing the necessary protection for you and your home. Nuisance tripping occurs when the GFCI outlet shuts off power to the receptacle even though there is no real danger. This could happen due to faulty wiring or a damaged appliance.
Understanding the Different Types of GFCIs Available
Receptacle-Type vs. Portable-Type GFCIs: Which One to Choose?
A ground fault circuit interrupter (GFCI) is an essential device that can save lives and prevent injuries. A GFCI works by monitoring the flow of electricity in a circuit and shutting off power when it detects a ground fault or leakage current. There are two types of GFCIs available on the market today: receptacle-type and portable-type. In this section, we will discuss the differences between these two types and help you choose the one that best suits your needs.
Receptacle-Type GFCIs
Receptacle-type GFCIs are built into electrical outlets, providing protection for all devices plugged into them. They are ideal for permanent installations in homes, offices, and other buildings where electrical circuits are fixed and not likely to change frequently. Receptacle-type GFCIs come in different configurations, such as single receptacles or duplex receptacles with two outlets. They can be installed indoors or outdoors, depending on their rating and specifications.
One advantage of using receptacle-type GFCIs is that they provide continuous protection without requiring any user intervention or maintenance. Once installed, they work silently in the background, monitoring the current flow and tripping when necessary. Another advantage is that they can protect multiple devices at once without requiring additional equipment or wiring.
Portable-Type GFCIs
Portable-type GFCIs, also known as plug-in GFCIs or inline GFCIs, are designed for temporary use or situations where mobility is required. They come in a plug-in device that can be used with any outlet and provide protection for one device at a time. Portable-type GFCIs are perfect for outdoor activities like camping, boating, or construction sites where electrical hazards may exist.
There are two main styles of portable-type GFCIs: cord-connected and direct plug-in. Cord-connected GFCIs have a built-in cord that can be plugged into an outlet, and the device to be protected is plugged into the GFCI’s receptacle. Direct plug-in GFCIs are compact devices that plug directly into an outlet and have a single receptacle for the device to be protected.
One advantage of using portable-type GFCIs is their versatility and portability. They can be easily moved from one location to another without requiring any installation or wiring. Another advantage is that they provide personal protection for users who may come in contact with electrical equipment or tools.
Step-by-Step Guide on How to Install GFCI Outlets
Turn off the Power Supply to the Electrical Panel
Before you start installing GFCI outlets, it’s crucial to turn off the power supply to the electrical panel. This step is essential to avoid any potential electric shock or damage. To do this, go to your electrical panel and locate the circuit breaker that controls the outlet’s electricity. Once you’ve found it, switch it off.
Use a Voltage Tester Before Touching Wires
After turning off the power supply, use a voltage tester to check if there is still electricity flowing through the wires. This tool will help you determine if it’s safe to touch them or not. Simply place one probe on each wire and wait for a reading from the tester. If there is no electricity flowing through them, then you can proceed with confidence.
Follow Wiring Path from Electrical Panel
Now that you’re sure there is no electricity running through your wires, follow their path from your electrical panel all the way to your new outlet. Make sure you connect each wire in its proper order – black (hot), white (neutral), and green or bare copper (ground). You can use wire nuts or electrical tape to secure them together.
Attach Outlet with Screws and Electrical Tape
Once all of your wiring is complete, attach your new outlet by using screws and a screwdriver or drill to fix it into place inside of its box. Afterward, use some electrical tape around any loose wires for added security before covering up everything with an outlet cover plate.
Press Reset Button on Outlet
Finally, press down on the reset button located at the center of your newly installed GFCI outlet. If everything was done correctly up until now, then this should reset your circuit breaker and allow power back into your new outlet without tripping it right away.
Tips for Maintaining Your GFCI Outlets
Testing your GFCI Outlets Monthly
It is important to test your GFCI outlets monthly to ensure they are working properly. This simple task can help prevent electrical shocks and fires in your home. To test your GFCI outlet, plug a lamp or other device into the outlet and turn it on. Then press the “Test” button on the outlet. If the device turns off, the GFCI outlet is working correctly. If it does not turn off, then there may be a problem with the outlet and it should be replaced.
Replacing Your GFCI Outlets Every 5-10 Years
GFCI outlets have a lifespan of about 5-10 years before they need to be replaced. It is important to replace them as recommended by the manufacturer to ensure they continue to function properly and provide protection from electrical hazards. If you notice any signs of wear or damage on your GFCI outlets such as cracks, discoloration, or loose connections, it’s time for a replacement.
Keeping Your GFCI Outlets Clean
Dust and debris can accumulate in your GFCI outlets over time, which can cause them to malfunction or fail altogether. To keep your outlets clean, use a soft cloth or brush to gently remove any dirt or debris that may have accumulated inside the outlet box. Avoid using water or cleaning solutions as these can damage the electrical components of the outlet.
Avoiding Extension Cords with GFCI Outlets
Using extension cords with GFCI outlets can cause tripping and damage if not used properly. It is best to avoid using extension cords whenever possible and instead use additional outlets installed by a licensed electrician if needed.
Replacing Damaged or Malfunctioning Outlets Immediately
If you notice any damage or malfunction in your GFCI outlets such as sparks, smoke, burning smells, or frequent tripping, replace them immediately. These signs indicate a serious electrical hazard that can lead to fires, electric shocks, and other dangerous situations.
Testing Your GFCI Outlets: How, When, and Why
Testing your ground fault circuit interrupter (GFCI) outlets is critical in ensuring that they are functioning correctly. GFCIs are designed to protect you from electrical shock by detecting any imbalances in the electrical current flowing through the circuit. If a GFCI outlet detects an imbalance, it will quickly shut off the power to prevent electrical shocks or fires.
How to Test a GFCI Outlet
To test your GFCI outlet, locate the “test” button on the front of the outlet and press it. This should cause the outlet to turn off immediately. Once you have pressed the test button, try plugging something into the outlet to ensure that it is no longer receiving power. If it still has power, then there may be an issue with your GFCI outlet.
When to Test Your GFCI Outlets
It is recommended that you test your GFCI outlets at least once a month to ensure they are working correctly. However, there are also other times when you should consider testing them:
- After a power outage.
- If someone accidentally dropped an electrical appliance into water near one of your outlets.
- If you notice any signs of damage or wear and tear on your outlets.
- Before using outdoor electrical equipment such as lawnmowers or hedge trimmers.
Why You Should Test Your GFCI Outlets Regularly
Regularly testing your GFCI outlets can help prevent potential hazards such as electric shock or fire caused by faulty wiring. It is essential to ensure that all of your home’s electrical systems are functioning correctly. Even if you haven’t had any issues with your outlets before, it’s always better to be safe than sorry.
When to Call a Professional
If you have tested your GFCI outlet and found that it isn’t working correctly, don’t attempt to fix it yourself unless you have experience working with electrical systems. Instead, call a professional electrician to diagnose and fix the issue. Attempting to fix an electrical problem yourself can be dangerous and may cause further damage.
Common Issues with GFCIs and How to Troubleshoot Them
Frequent tripping of a ground fault circuit interrupter (GFCI) can be frustrating, especially when it happens without any apparent reason. However, before attempting to reset the GFCI, it is essential to identify the cause of the problem. Here are some common issues with GFCIs and how to troubleshoot them.
Faulty Appliances or Wiring
One of the main reasons why a GFCI may trip frequently is because of faulty appliances or wiring. A damaged appliance or frayed wiring can cause an electrical short that triggers the GFCI. To troubleshoot this issue, unplug all appliances connected to the circuit and reset the GFCI. If it doesn’t trip again, plug in each appliance one at a time until you identify the faulty one.
Moisture
Moisture is another common cause of frequent tripping in GFCIs. Water can create an electrical path between a grounded object and an energized wire, leading to a ground fault and triggering the GFCI. This can happen if an appliance gets wet or if there is water leaking into an outlet box from outside. To troubleshoot this issue, ensure that all outlets are dry before resetting the GFCI.
Power Surges
A power surge can also cause a ground fault circuit interrupter to trip frequently. Power surges occur when there is a sudden increase in voltage that exceeds what your electrical system can handle. This can damage your appliances and trigger your GFCI. To troubleshoot this issue, install surge protectors on all electronics connected to your electrical system.
In some cases, even after troubleshooting using these methods, your GFCI may still continue to trip frequently. This could be due to a ground fault in your wiring or malfunctioning equipment such as switches or receptacles. In such situations, it’s best to call a licensed electrician to inspect and repair any wiring issues.
The Benefits of Installing GFCI Outlets in Your Home
Protecting your family and home from electrical hazards should be a top priority. One way to do this is by installing ground fault circuit interrupter (GFCI) outlets. These outlets are designed to detect and prevent electrical shocks, making them an essential addition to any modern home.
GFCIs work by continuously monitoring the amount of current flowing through a circuit. If there is an imbalance between the hot and neutral wires, it means that some of the current is leaking out of the circuit, possibly through a person’s body. When this happens, the GFCI quickly shuts off power to the outlet, preventing electrocution.
The benefits of installing GFCI outlets in your home are numerous. For one, they greatly reduce the risk of electrical shock. This is especially important if you have small children or elderly individuals living in your home who may be more susceptible to injury from electrical accidents.
Another benefit is that GFCIs can help protect your property from damage caused by electrical fires. By shutting off power when an imbalance occurs, they prevent overheating and other issues that could lead to a fire.
Installing GFCI outlets is also relatively easy and inexpensive compared to other safety measures you might take around your home. With just a few tools and some basic knowledge of wiring, you can upgrade all of your existing outlets with GFCIs in no time at all.
Many insurance companies offer discounts on homeowners’ insurance premiums for homes equipped with GFCI outlets. This means that not only will you be protecting your loved ones and property, but you’ll also save money in the long run.
