Imagine this scenario: you’re at home, enjoying a peaceful evening, when suddenly you realize that one of your electrical outlets has burned out. Panic sets in as you wonder how you’ll fix it – after all, electrical work can seem intimidating. But fear not! In this step-by-step guide, you’ll discover just how easy it is to replace a burned-out electrical outlet. With clear instructions and helpful images, you’ll be able to confidently tackle this task on your own. From turning off the power to reattaching the faceplate, we’ve got you covered. Say goodbye to expensive electrician bills and hello to a DIY electrical outlet replacement process that anyone can master.

How to Replace an Electrical Outlet: A Comprehensive Guide

Are you tired of dealing with faulty electrical outlets in your home? Do you want to save money by doing the repairs yourself? Well, you’re in luck! This comprehensive guide will walk you through the step-by-step process of replacing an electrical outlet. Don’t worry if you don’t have any electrical experience – this task is much easier than you might think. So gather your tools and let’s get started!

Step 1: Gather the Necessary Tools and Materials

Before you begin replacing your electrical outlet, it’s important to gather all the necessary tools and materials. Here is a checklist of the tools and materials you will need for this project:

• Screwdriver (flathead or Phillips, depending on the screws used)
• Voltage tester
• Wire stripper
• Needle-nose pliers
• Electrical tape
• New electrical outlet
• Faceplate

Choosing the Right Outlet:

When selecting a new electrical outlet, it’s important to choose one that is suitable for your specific needs. Consider factors such as the outlet type (standard, GFCI, USB), number of receptacles, and any special features you may require. You can find a variety of outlets at your local hardware store or online.

Step 2: Turn Off the Power

Safety should always be your top priority when working with electricity. Before you begin replacing the outlet, make sure to turn off the power to the circuit you will be working on. Follow these steps to safely turn off the power:

Locating the Circuit Breaker Panel:

The circuit breaker panel is typically located in the basement, garage, or utility room of your home. It may also be located on an exterior wall. Take a moment to familiarize yourself with the panel’s location.

Identifying the Correct Circuit:

Once you’ve located the circuit breaker panel, it’s time to identify the correct circuit that supplies power to the outlet you will be replacing. Each circuit breaker in the panel should be labeled – look for a label that corresponds to the room or area where the outlet is located. Flip the circuit breaker switch to the “off” position to cut off power to the outlet.

Step 3: Remove the Old Outlet

Now that the power is turned off, you can safely remove the old outlet. Follow these steps to complete this task:

Turning Off the Outlet:

Before removing the old outlet, ensure that the power is turned off by using a voltage tester. Insert the probe into each of the outlet’s slots to confirm that there is no voltage present.

Removing the Faceplate and Outlet:

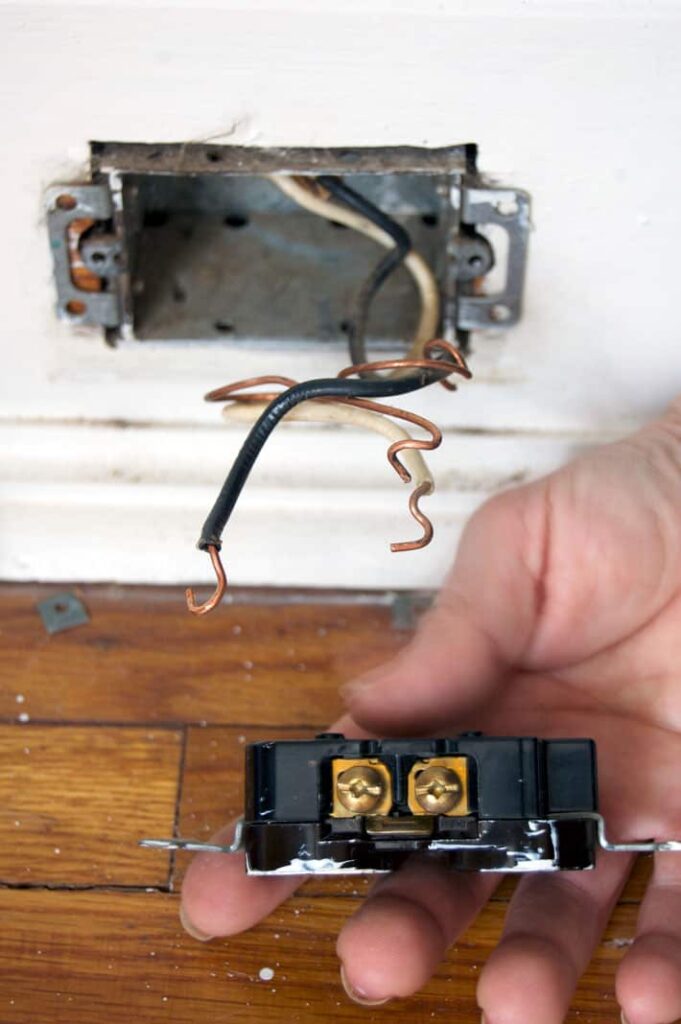

Using a screwdriver, remove the screws that secure the faceplate to the outlet. Once the faceplate is removed, you will see the outlet itself. Remove the screws that secure the outlet to the electrical box.

Testing the Wires:

Before disconnecting the wires from the old outlet, it’s a good idea to test them to ensure there is no electricity flowing through them. Use a voltage tester to check for any remaining voltage. If the tester lights up or beeps, there is still voltage present, and you should double-check that the power is turned off.

Step 4: Prepare the New Outlet

With the old outlet out of the way, it’s time to prepare the new outlet for installation. Follow these steps to get the new outlet ready:

Inspecting the New Outlet:

Take a close look at the new outlet to make sure it is free of any defects or damage. Check the receptacles, screws, and wiring terminals for any issues. If you notice any problems, it’s best to exchange it for a new one before proceeding.

Preparing the Wires:

Strip the insulation off the ends of the wires to expose a sufficient length for connecting them to the new outlet. Use wire strippers to carefully remove the insulation, taking care not to damage the wire strands. It’s important to have a clean and undamaged strip of wire for a secure connection.

Step 5: Attach the Wires to the New Outlet

Now that the new outlet is ready, it’s time to attach the wires. Follow these steps to ensure a proper and safe connection:

Identifying the Hot, Neutral, and Ground Wires:

Before making any connections, it’s important to identify the different wires. The hot wire is typically black or red, the neutral wire is usually white or gray, and the ground wire is green or bare copper. If you’re unsure which wire is which, consult a professional electrician or refer to an electrical diagram specific to your home.

Connecting the Wires:

Attach the hot wire to the brass or gold screw terminal on the new outlet, the neutral wire to the silver screw terminal, and the ground wire to the green screw terminal or grounding wire on the outlet. Use needle-nose pliers to secure the wires tightly around the screw terminals. Make sure there are no loose strands of wire, as this could cause a hazard.

Step 6: Install the New Outlet

With the wires securely attached, it’s time to install the new outlet into the electrical box. Follow these steps to complete this task:

Mounting the New Outlet:

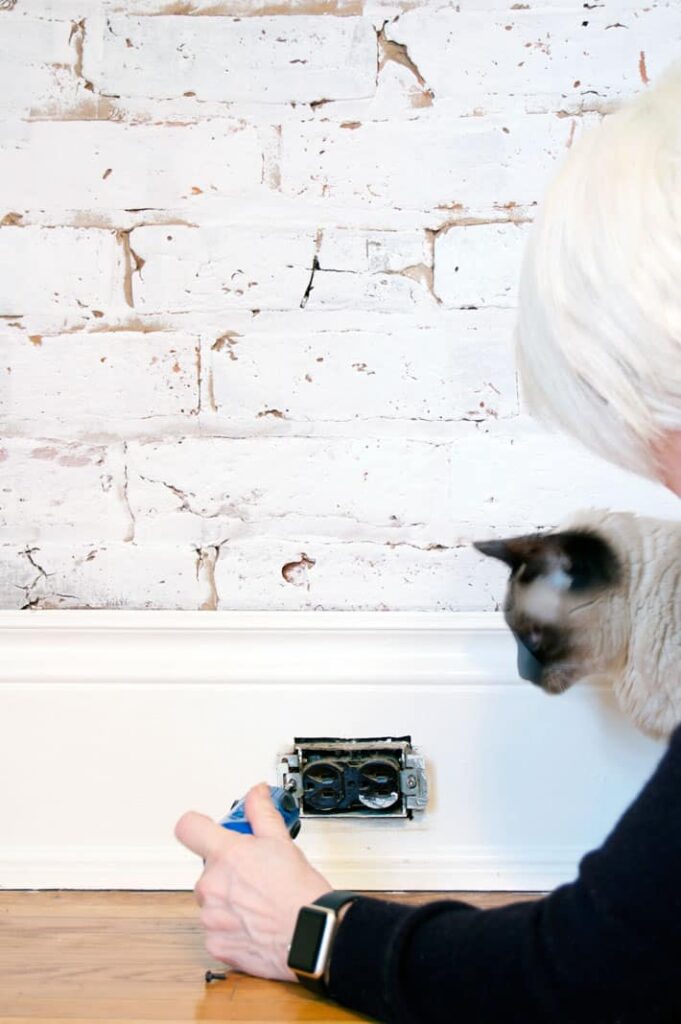

Place the new outlet into the electrical box, aligning the screw holes with the openings in the box. Use the provided screws to secure the outlet to the box, making sure it is flush against the wall.

Securing the Outlet:

Tighten all screws to ensure the outlet is securely fastened. Avoid overtightening, as this could damage the outlet or electrical box. Give the outlet a gentle tug to make sure it is firmly in place.

Step 7: Test the Outlet

Before you can start using the new outlet, it’s important to test it to ensure it is functioning properly and safely. Follow these steps to test the outlet:

Turning On the Power:

Return to the circuit breaker panel and flip the switch for the circuit supplying power to the outlet back to the “on” position. This will restore power to the outlet.

Using a Circuit Tester:

Use a circuit tester to check if the outlet is functioning correctly. Insert the tester into each of the outlet’s slots, and if the tester lights up or beeps, it indicates that the outlet is properly wired and working.

Step 8: Reattach the Faceplate

Now that you’ve confirmed that the outlet is in working order, it’s time to reattach the faceplate. Follow these steps to complete the installation:

Aligning the Faceplate:

Line up the screw holes on the faceplate with the openings on the outlet. Make sure the faceplate is straight and centered over the outlet.

Screwing in the Faceplate:

Use a screwdriver to secure the faceplate to the outlet. Tighten the screws until they are snug, but be careful not to overtighten and damage the faceplate.

Step 9: Common Questions and Concerns

Replacing an electrical outlet may raise some questions or concerns. Here are answers to some common queries:

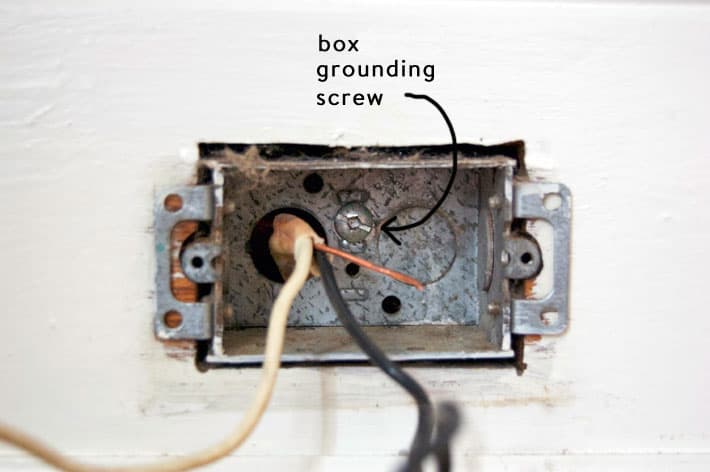

Grounding the Wires:

Ensuring that your electrical outlet is properly grounded is essential for safety. If your home’s wiring does not include a ground wire, consult a professional electrician for guidance on proper grounding methods. It’s important not to bypass grounding to avoid potential electrical hazards.

Using Electrical Tape:

While electrical tape can be useful for insulating exposed wires, it’s not always necessary when replacing an electrical outlet. Properly connected wires secured with wire nuts and wrapped around screw terminals do not require additional insulation. However, if you have any concerns or if your local electrical codes require it, it’s acceptable to use electrical tape for added protection.

Step 10: Where to Purchase Outlets

Ready to purchase your new electrical outlets? Here are some recommended options:

Recommended Outlets:

• Leviton Decora Electrical Outlet
• Eaton Cooper Wiring Devices TR Socket Receptacle Outlet
• Lutron Electrical Outlet

Hardware Store Options:

Visit your local hardware store, such as Home Depot or Lowe’s, to find a wide range of electrical outlets. Make sure to check the specifications of the outlets to ensure they meet your needs. The knowledgeable staff can assist you in choosing the right outlet for your specific requirements.

With this comprehensive guide, you now have the knowledge and confidence to replace your own electrical outlets. Remember to always prioritize safety, follow the step-by-step instructions, and consult a professional if you have any doubts or concerns. Your new outlets will not only provide reliable power but also give you peace of mind. Happy DIY-ing!
