Have you ever wondered what the purpose of the red wire is in electrical wiring? You might have noticed this distinctive color among the maze of wires behind your walls or inside electrical devices. Well, the red wire serves a crucial role in electrical circuits, acting as the traveler wire in three-way switches and as the secondary live wire in multi-way switch setups. By understanding the significance of the red wire, you can gain a deeper comprehension of how electrical systems work and ensure the safe and efficient distribution of electricity in your home or any other setting.

what-is-the-purpose-of-the-red-wire-in-electrical-wiring | Atlanta Ga

Understanding Electrical Wiring

Electrical wiring serves a crucial role in providing power and connecting electrical devices in our homes, businesses, and industrial settings. It is essential to have a comprehensive understanding of electrical wiring to ensure the safe and efficient operation of our electrical systems. This article aims to shed light on the importance of electrical wiring, the different types of wiring, and specifically focus on the purpose and applications of the red wire.

Importance of Electrical Wiring

Electrical wiring is the backbone of any electrical system. It enables the transmission of electrical current from the power source to various devices and appliances. Without proper wiring, electricity cannot reach its intended destination, rendering our electrical devices useless.

Besides providing power, electrical wiring also ensures safety by preventing short circuits, overloading, and electrical fires. Properly installed and maintained wiring systems minimize the risk of electric shock and protect both people and property.


Different Types of Electrical Wiring

Electrical wiring comes in various forms, each designed for a specific purpose and environment. The most common types of wiring used in residential, commercial, and industrial settings include:

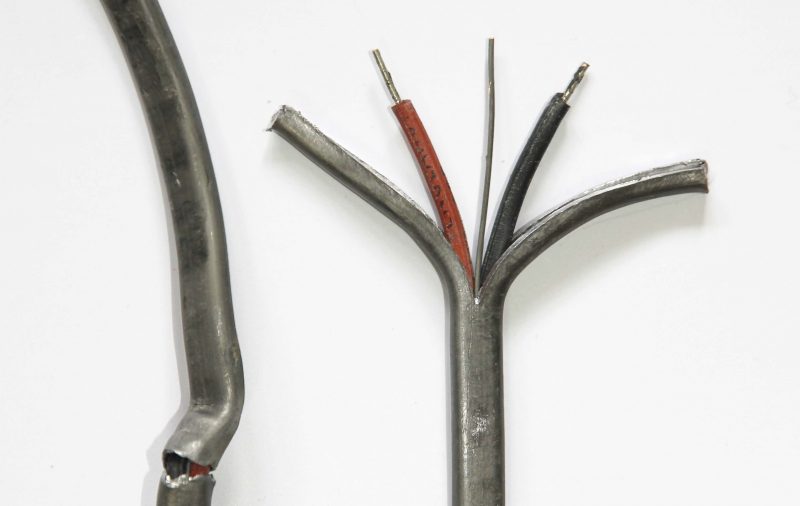

  1. Non-Metallic Sheathed Cable (NM): Also known as Romex, NM cable is widely used in residential wiring. It consists of two or more insulated conductors (usually black and white) and a bare ground wire. The color-coding of NM cable plays a crucial role in properly identifying the different conductors.

  2. Armored Cable (AC): AC cable is commonly used in residential and light commercial settings. It features a flexible metal sheath that provides protection against physical damage. AC cable typically includes a black, white, and bare ground wire.

  3. Conduit Wiring: Conduit wiring utilizes metal or plastic pipes to protect the electrical wires. It is commonly found in commercial and industrial settings due to its durability and flexibility in accommodating additions or modifications.

  4. Power and Control Wiring: In industrial settings, power and control wiring ensures the distribution of power and communication between different machines and devices. It often involves heavy-duty cables capable of withstanding high temperatures and harsh environments.

Color Codes in Electrical Wiring

Color coding is an essential aspect of electrical wiring, as it helps identify the purpose and function of each wire. Different colors represent specific functions and are used consistently across industries and countries to ensure uniformity and safety.

Explanation of Color Codes

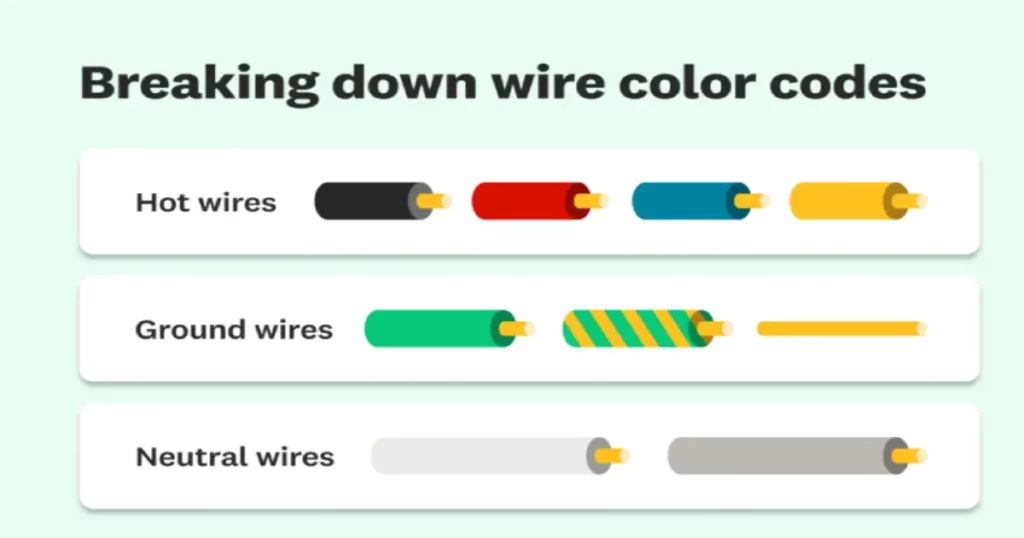

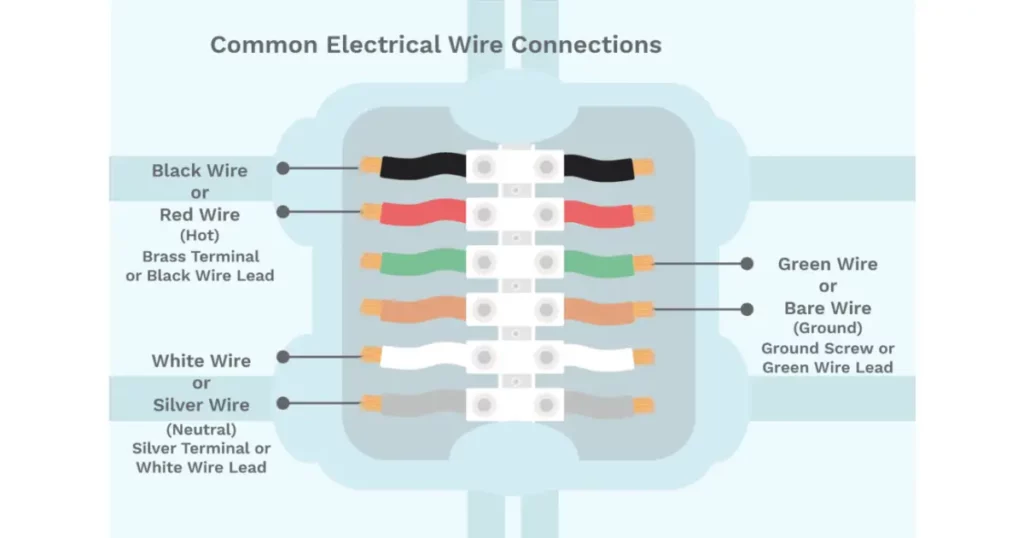

In electrical wiring, certain colors are designated for specific wires to avoid confusion and provide a standardized system. While the colors used may vary slightly between countries, the most commonly recognized color codes include:

  • Black Wire: Traditionally used as the live or hot wire, black wires carry the electrical current from the power source to the devices.

  • White or Gray Wire: White or gray wires are typically designated as neutral wires, which complete the circuit and provide a return path for the electrical current.

  • Green or Bare Wire: Green or bare wires represent the ground wire, responsible for preventing electrical shock by safely diverting excessive current to the ground.

  • Red Wire: The red wire serves various purposes depending on the specific wiring configuration. It is commonly used in three-way switches, ceiling fans, and specific device wiring.

Significance of Red Wire

The red wire holds a crucial role in electrical wiring and is not to be overlooked. Its distinctive color sets it apart and designates it for specific applications.

What is the purpose of the red wire in electrical wiring?

The Purpose of the Red Wire

Understanding the functions and applications of the red wire is essential for anyone involved in electrical work or responsible for household maintenance. Let’s explore some common functions and applications of the red wire in different settings.

Functions of the Red Wire

  1. Alternate Switching: In three-way and four-way electrical switch systems, where multiple switches control a single light fixture, the red wire serves as a traveler wire. It allows the flow of electrical current between the switches, enabling the user to turn the lights on or off from different locations.

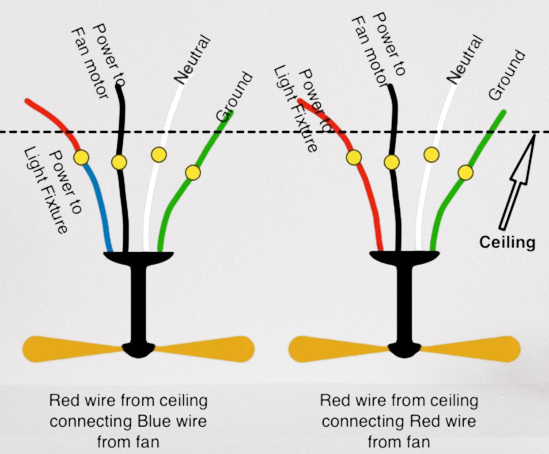

  2. Ceiling Fan and Light Fixtures: In the case of ceiling fans or light fixtures that operate with separate switches for the fan and light, the red wire is commonly used to control the fan. This allows for independent control of the fan and light functions.

  3. Device Wiring: Certain devices and appliances, such as ranges, ovens, and air conditioning units, require an additional hot wire to carry higher voltage or provide specialized circuit functions. The red wire is often employed for these purposes.

Specific Applications of the Red Wire

While the red wire plays an important role in residential electrical wiring, it is also utilized in commercial and industrial settings for specific applications.

Red Wire in Residential Wiring

Role of Red Wire in Residential Circuits

In residential wiring, the red wire is primarily used for three-way switches, where it acts as a traveler wire, allowing convenient control of lights from multiple locations. By implementing a three-way switch setup, homeowners can save themselves from the hassle of walking back and forth to a single switch location.

Types of Residential Circuits Using Red Wire

Besides three-way switches, the red wire finds application in various residential circuits. For instance, when installing separate switches for a ceiling fan and light fixture, the red wire may be utilized to control the fan. Moreover, in outlets that provide both regular power and switched power, the red wire may be employed to deliver switched power to certain devices or lamps.

What is the purpose of the red wire in electrical wiring?

Red Wire in Commercial Wiring

Role of Red Wire in Commercial Circuits

In commercial settings, the red wire serves similar purposes as in residential electrical systems. It is primarily used for three-way switches, ceiling fans, and other devices that require separate controls or higher voltage capabilities.

Types of Commercial Circuits Using Red Wire

Commercial buildings, such as offices or hotels, often require lighting systems that can be operated from various locations. By incorporating three-way switches with the red wire as a traveler, users can conveniently manage lights from different areas of a room, corridor, or lobby.

Red Wire in Industrial Wiring

Role of Red Wire in Industrial Circuits

Industrial wiring involves more complex circuits due to the extensive machinery and specialized equipment used. In these settings, the red wire can fulfill multiple functions, such as carrying higher voltage, controlling devices, or serving as a communication line between various components.

Types of Industrial Circuits Using Red Wire

In industrial settings, the red wire may be used for motor controls, such as starting and stopping machines. It is also commonly employed in power distribution panels, where it signifies high-voltage connections or specific circuits. Additionally, in large-scale industrial operations, the red wire may be utilized as a communication line, linking various control systems and components.

What is the purpose of the red wire in electrical wiring?

Specific Uses of the Red Wire

Red Wire in Three-Way Switches

Three-way switches allow for flexibility in controlling the same light fixture from multiple locations. The red wire acts as a traveler wire, interconnecting the multiple switches. By configuring the switches correctly, users can turn the light on or off from any of the switch locations, providing convenience and versatility.

Red Wire for Ceiling Fan and Light Fixtures

Ceiling fans and light fixtures often require separate controls. The red wire is commonly used in such scenarios to operate the fan independently from the light. This allows users to adjust the fan speed or turn it on/off without affecting the light function.

Red Wire in Device Wiring

Red Wire for Appliances and Devices

Certain appliances and devices, particularly those requiring higher voltage or specialized circuits, may utilize the red wire for their operation. Ranges, ovens, air conditioning units, and other similar devices may require an additional hot wire, which is often represented by the red wire.

Red Wire for Power Supplies

Power supplies, especially those involving complex or specific power requirements, may include the red wire. It can signify a higher voltage connection or serve as a designated wire responsible for powering certain components.

Safety Precautions

Importance of Proper Electrical Wiring

Proper electrical wiring is vital for the safety and well-being of everyone in a space. Faulty or inadequate wiring can lead to electrical shocks, short circuits, fires, and even fatalities. It is crucial to ensure that all electrical work is conducted by qualified professionals adhering to local codes and regulations.

Handling Red Wire Safely

When handling the red wire or performing any electrical work, safety precautions must be followed. Always ensure that the power is switched off, use appropriate personal protective equipment (PPE), and avoid touching bare wires. If you are not experienced in electrical work, it is best to consult a licensed electrician.


Understanding electrical wiring is essential to ensure the proper functioning and safety of our electrical systems. The red wire, with its distinct color, serves specific purposes in various electrical applications. Whether in residential, commercial, or industrial settings, the red wire enables versatility, control, and the efficient operation of lighting, fans, devices, and more. By grasping the significance of each wire’s color and the specific uses of the red wire, we can confidently navigate electrical projects and maintain the integrity of our electrical systems.
